Raw material work capacity 150-200t/h mobile gold mining machine

Brief introduction-Gold mining machine,mining machinery

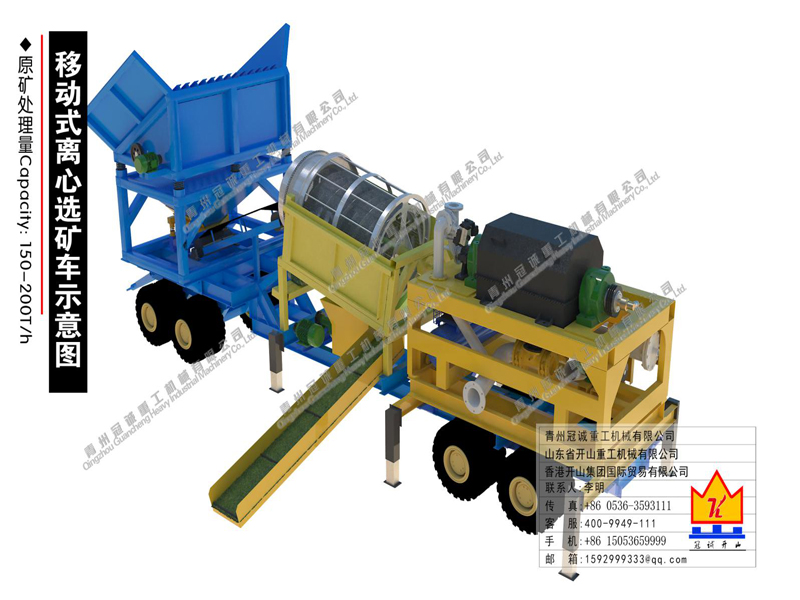

Raw material work capacity 150-200t/h mobile gold mining machine,consist of vibrating feeder,transport conveyor,horizontal gold centrifugal concentrator,the outlet size13*6.5*5.2m,is designed and manufactured by our company.
Technical process-Gold mining machine,mining machinery
The mineral mixture getting into vibrating feed hopper by excavator,firstly to get rid the useless minerals in very big size,it makes the machine more efficently and can redcue the abrasion,then the mineral getting into shaking feeder under vibrating feeder,transporting by conveyor to reamers trommel screen to be classified to be:big size and small size.The mineral in big size recovering by fixed sluice to collet the gold,the scrap are getting rid;the mineral in small size are sending to horizontal auto discharge concentrator by sand pump to get gold concentrate and the scrap finally are getting ride to scrap area.
Detail parameter-Gold mining machine,mining machinery
The Max outlet size(including driving bar):13*6.5*5.2m
Length of base plate:11m,made of 25double T steel
Tyre：900-2#,4axles16tyres
Mechanical holding frames:6pcs
Vibrating feed hopper:Length 2m,width:3m,eccentric shaft motor5.5kw,Motor of shaking feeder:0.55kw
Trommel screen:inner diameter 1.3m,outer diameter1.6m,screen mesh 1.8m,reamer trommel 2.5m,the central water supplying system,motor 7.5kw
Feeding conveyor:belt width 0.6m,pole length2.8m,Motor:elctric roller 2.2kw
Sand pump:4inch,motor 15kw
Volume of vibrating feed hopper:about 2-5CBM

Fixe gold sluice with carpet:1*4m
