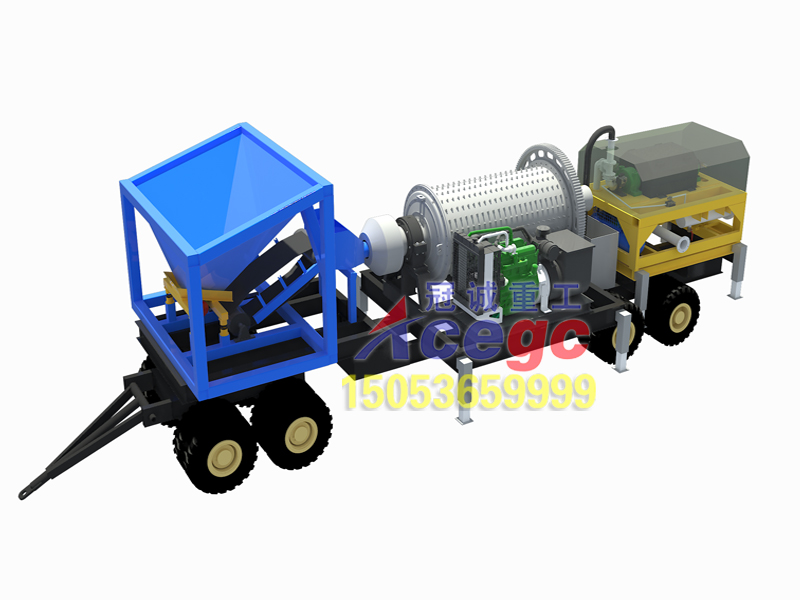

Rock mine movable gold separating plant

Introduction
This set of gold mining machinery is specialized rock mine movable gold separtor,it’s customized using for rock mine material,the advantage:
1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.
2.The shaking feeder under feed hopper to prevent clogging of material
3.The concentrator sysytem we can horizontal auto discharge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.
Technical process
The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)
Detail parameter
Gold mining machinery capacity：5-10ton/hour
Gold mining machinery size:17.5*3*4.2m（L*W*H）
Length of base plate：17.5m
Ball mill feeding size：0-25mm
Ball mill:
1500*4500 capacity:5-11T/H,power:110kw
Gold mining machinery horizontal auto discharge concentrator:

60# power:6.05KW
Generator set: advise to use 150kw 1set
Driving speed:advise to be less than 15km/h
