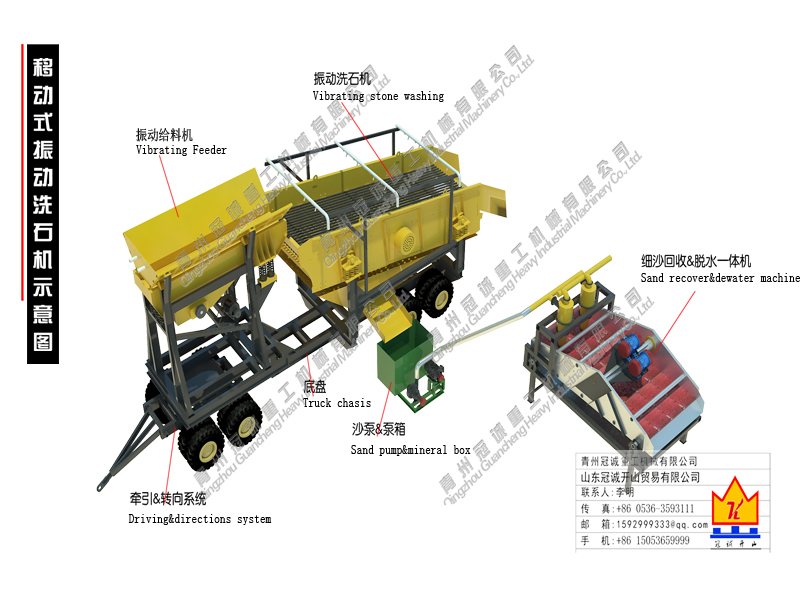

Mobile Stone Washing Plant
Gold mining machinery technical process
Raw material into vibrating feeder ,then swilling by high pressure water into vibrating screen and classified into 3 size,small medium and big size,the big size transported to destination;
the medium size material transported to destination;the small size material into mineral box pumping into fine sand recover and dewater machine,then fine sand transported to destination.
Gold mining machinery detail parameter
|
Production |
Specification |
Quantity |
Power |
Unit price |
Total price |
Remark |
|
Mobile vibrating stone washing machine |
vibrating feeder：3896 vibrating stone washing Base plate：trailer chasis 4 axles 16 wheels swilling pipe and water segregator 1set |
1set |
30 |
|||
|
Fine sand recover and dewater machine |
Specification：2000*3850 6inch mineral box+30kw motor+mineral box |
1set |
36.4 |
|||
|
Transport conveyor |
belt width 600 |
1pcs |
7.5 |
|||
|
water pump |
7.5KW |
1pcs |
7.5 |
|||
|
Electric box |
1pcss |
- |
||||
|
Total power |
81.4KW |
|||||
