Length 15m capacity 50m3/hour bucket gold dredger
Introduction

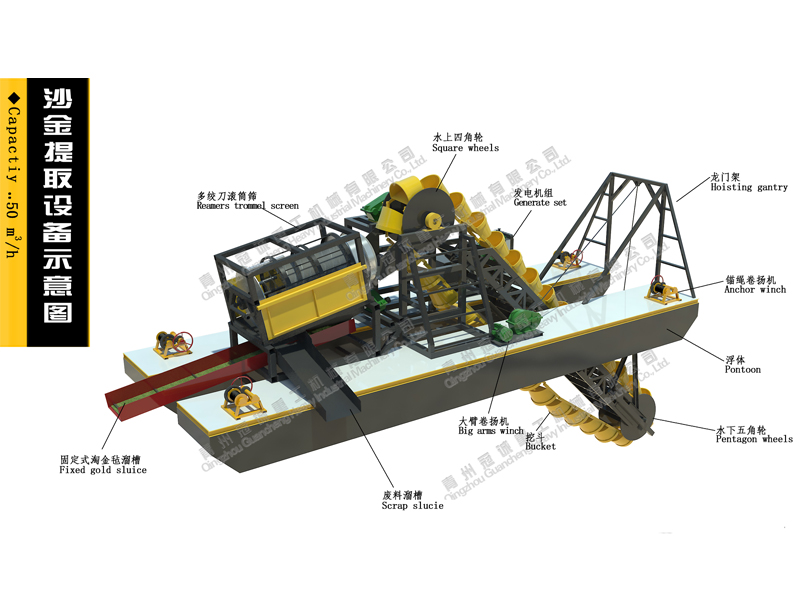

This gold bucket chain dredger is customized design,the trommel screen and dredger advantage as below:
1. The driving system with bucket chain drive,with high efficient and lower electric
2. The trommel screen with reamers is suitable for types of mining minerals especially clay ore.
3. The water system with central washing and side swilling type,central washing the big size material and side swilling to wash the screen mesh to prevent plugging.
Technical process
The raw material getting into trommel screen to be classified into 2size:the big one and normal one,the big useless to be directly send to scrap area;the small one to be recovered by on fixed shaking sluice with gold carpet,the gold are kept in by the gold carpet.
Detail parameter
|
Production name |
Specification |
Quantity |
Power/Kw |
Remark |
|
Pontoon |
Length15m,single width1.8m,height 0.96m |
1set |
- |
|
|
Bucket |
Bucket50#，big arms length10m |
1set |
18.5 |
|
|
Trommel screen |
Inner diameter1.3m,outer diameter1.6,screen mesh1.8m |
1pcs |
4 |
|
|
Fixed gold sluice with carpet |
1*6m |
1pcs |
- |
|
|
Big arm winch |
|
1set |
15 |
|
|
Anchor winch |
|
4set |
- |
Handling /automatic type,can be customized |
|
Submerged pump |
5.5KW |
1pcs |
5.5 |
|
|
Electric box |
|
1set |
- |
|
|
Power during working period |
28KW |
|||
