Rock mine crushing and sand making solutions

 Rock sand making plant

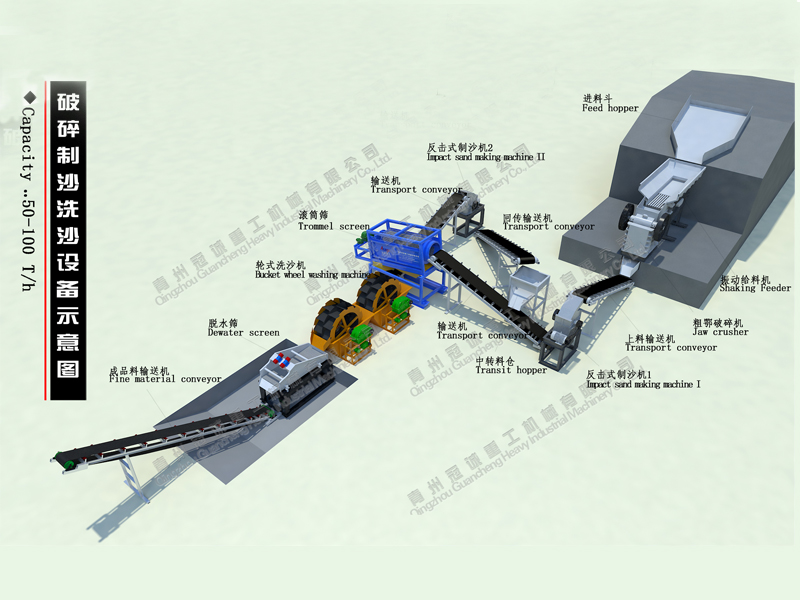

Technical process

The Raw material get into feed hopper then send by shaking feed into the jaw crusher to be crushed,the crushed material get into impact sand making machine I to make sand,then transport into trommel screen to be classified into 2size,≤5mm,≥5mm,

The one in size≥5mm will be transported by conveyor into another impact sand making machine to be crushed then get into trommel screen to be classified,

The one≤5mm will be send to bucket sand washing machine machine then into the dewater screen to get rid of water,then finally clean sand get and transported to destination area.
Detail parameter


Production Name


  Specification


  Quantity


  Power


  Remark

 Feed hopper

5000*4000

1set

-


Shaking feeder

850*3000

1set

3KW*2


Jaw crusher

500*750

1set

55KW

Impact sand making machine

1214

2set

132KW*2

Trommel screen

Inner diameter1.3m,outer diameter1.6m,screen mesh length 3m

1set

15

Bucket wheel sand making machine

Ø2400*1600

2set

11KW*2

Dewater screen

1500*3000

1set

1.1

Transport conveyor

5pcs

5.5KW*5

Transit hopper

1set

-

Water pump

2set

5.5KW*2

Electric box



1set

Total power

401.6KW
