160-200tph gold mining machinery plant

Brief Introduction of gold mining machinery

This set of gold mining machinery is river+land work unit,it can be a good performance for river bank gold separating,feeding with excavator and work capacity of material ≤6mm is 160-200tph;This set of mining machinery with our newly designed 1200# horizontal automatic discharge concentrator,can solve the problem as the balance of traditional knelson series centrifugal concentrator,and we upgraded the trommel screen with more efficient to classify the mixture of raw material.
Trommel screen of gold mining machinery:

The engine with chian driving design,the tranfer can be well-distributed and highly efficient, saving the energy Inner screen with punching process,including reamers all over the trommel screen,can get rid the clay from the material with great efficient.The trommel screen with central +2sides water supplying,the central water supplying can swilling bottom of trommel screen，the 2sides water supplying in charge of swilling the screen mesh.

Technical process of gold mining machinery

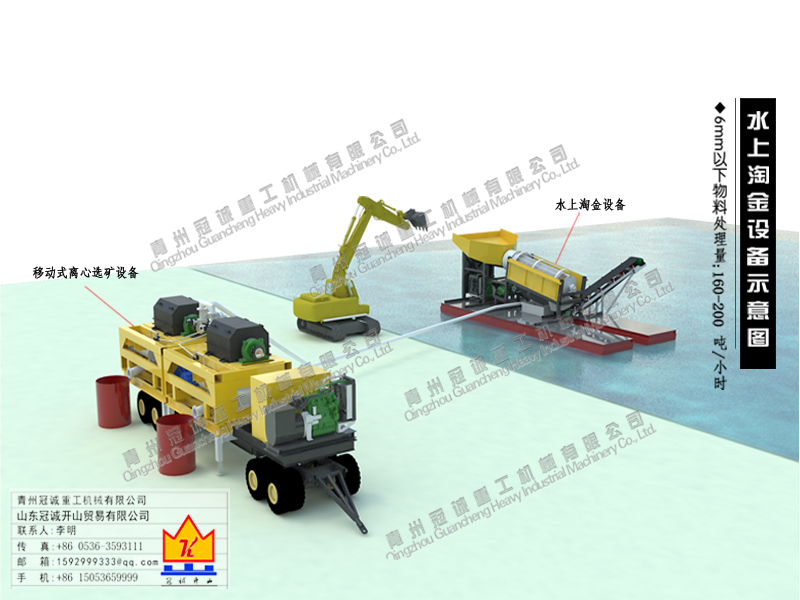

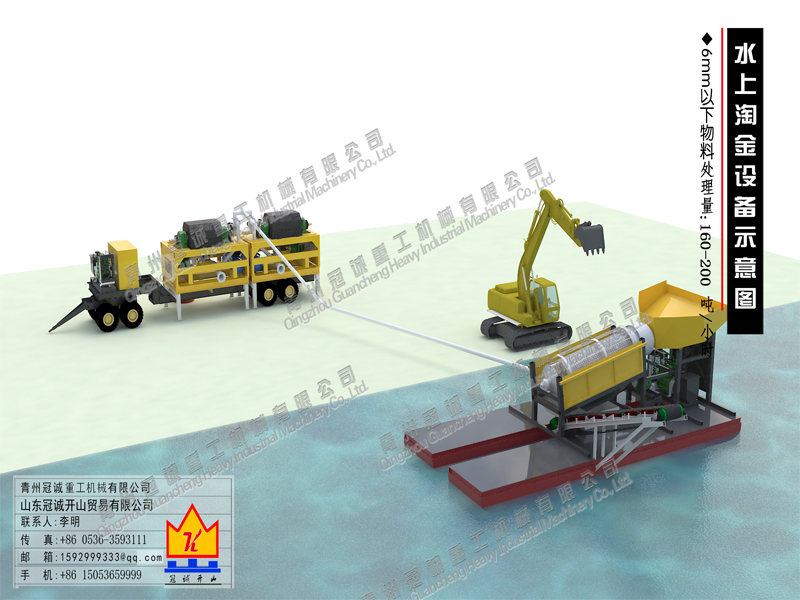

The raw material into feed hopper by excavator,then swilling by high pressure water into trommel screen to get rid the clay and calssified into 2size,≥6mm and≤6mm,the material≥6mm is scrap material Transported by conveyor to destination；The material≤6mm into mineral box and send into land mobile gold separating plant,which is composed of 2set 1200# horziontal gold concentrator,the concente finally get and scrap getting rid.
