60-100tph Mobile Sand Making Plant Machine
【Technical process】

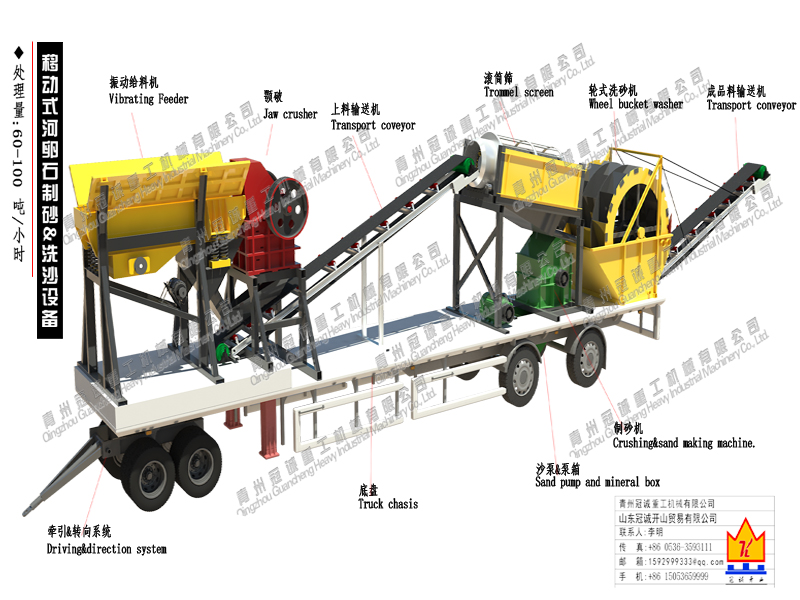

The raw material get into vibrating feeder then the material in big size into jaw crusher to be crushed,the crushed material and screened material in small size into trommel screen to be classified into 2 size,big size and small size.
The classified small size material into wheel bucket sand washer for water washing;then big size into crushing and sand making machine,the crushed material into wheel bucket sand washer for water washing by sand pump,the clean sand get and transport by conveyor to destination.
【Detail parameter】
|
Production Name |
Specification |
Quantity |
Power |
Remark |
|
Base plate |
17.5 semi trailer chasis |
1pcs |
- |
|
|
Driving system |
2axles 4wheels |
1set |
- |
Can be customized |
|
Vibrating feeder |
3800*750 |
1set |
15 |
|
|
Jaw crusher |
PE400*600 |
1set |
30 |
|
|
Trommel screen |
Inner diameter 1m,outer diameter 1.3m,screen mesh 2.5m |
1set |
5.5 |
|
|
Crushing and sand making machine |
800*1000 |
1set |
90 |
|
|
Wheel bucket sand wheel |
Ø2800*1800 bucket in 3lines |
1set |
7.5 |
|
|
Transport conveyor |
Belt width 800 |
1pcs |
11 |
Feeding the trommel screen |
|
Transport conveyor |
Belt width 800 |
1pcs |
7.5 |
Final production delivery |
|
Water pump |
|
1set |
5.5 |
|
|
Electric box |
|
1pcs |
- |
|
|
Total power |
172KW |
|||
