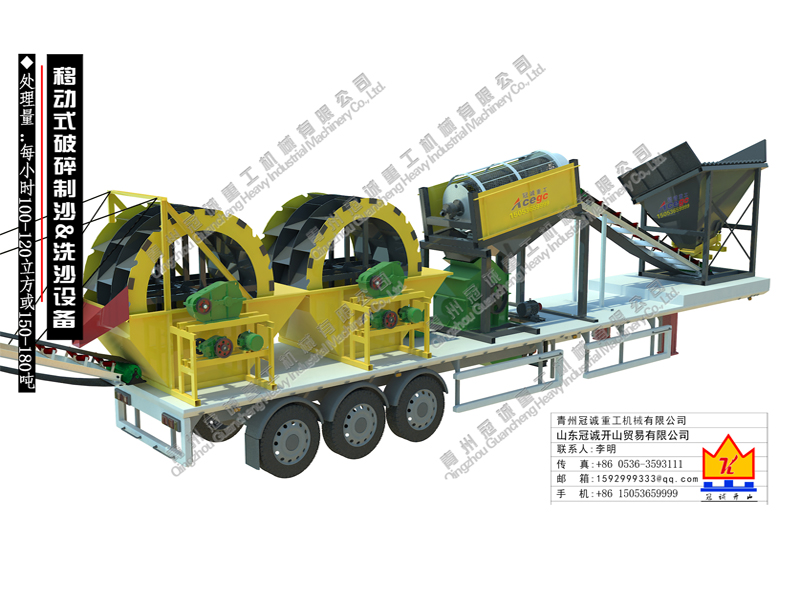

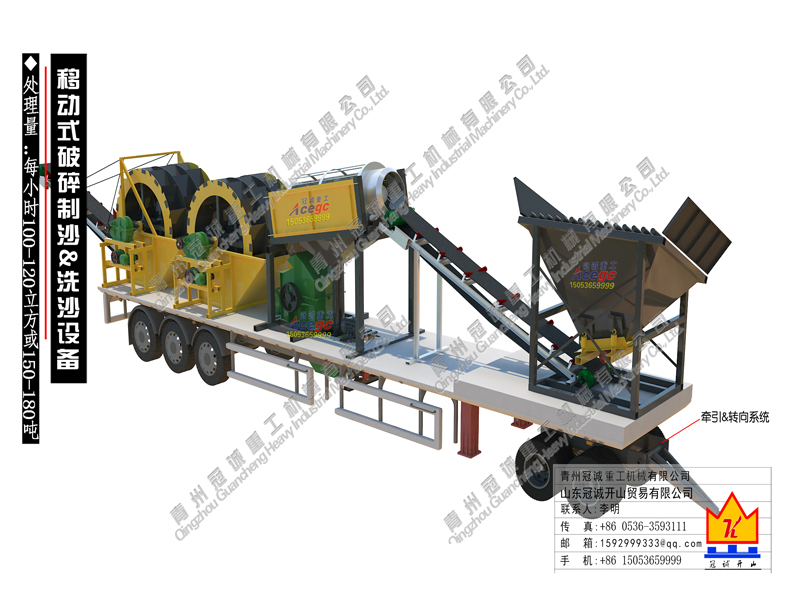

Mobile screening crushing sand washing plant
Introduction
This set of Mobile screening crushing and sand washing plant,working capacity 100-120m3/h(150-180t/h),can be easily driven to destination by semi-trailer or excavator,loader etc.
Detail parameter
|
Production |
Specification |
Qunatity |
Power(KW) |
Remark |
|
Feed hopper |
3000*2200 |
1set |
0.38 |
Including shaking feeder |
|
Transport conveyor |
Belt width 800mm |
1pcs |
7.5 |
|
|
Reamers trommel screen |
Inner dia.:1m,outer dia.:1.3m,screen mesh 2.5m, including reamers all over the inside of trommel screen, Holding frames:15# square pipe |
1set |
5.5 |
Water supply: Central+2sides |
|
Sand making machine |
800*100 |
1set |
90 |
hammer material use high alloy type |
|
Wheel bucket sand washer |
Buckets in 4 lines |
2pcs |
11*2 |
|
|
Final production conveyor |
800mmBelt width 800mm |
1pcs |
5.5 |
|
|
Sand pump |
6inch |
1pcs |
22 |
|
|
Base plate |
semi trailer chasis 3axle 12 tr |
1pcs |
- |
|
|
Water pump |
1pcs |
7.5 |
||
|
Total power |
160.38KW |
|||
