Introduction of Mobile crushing station

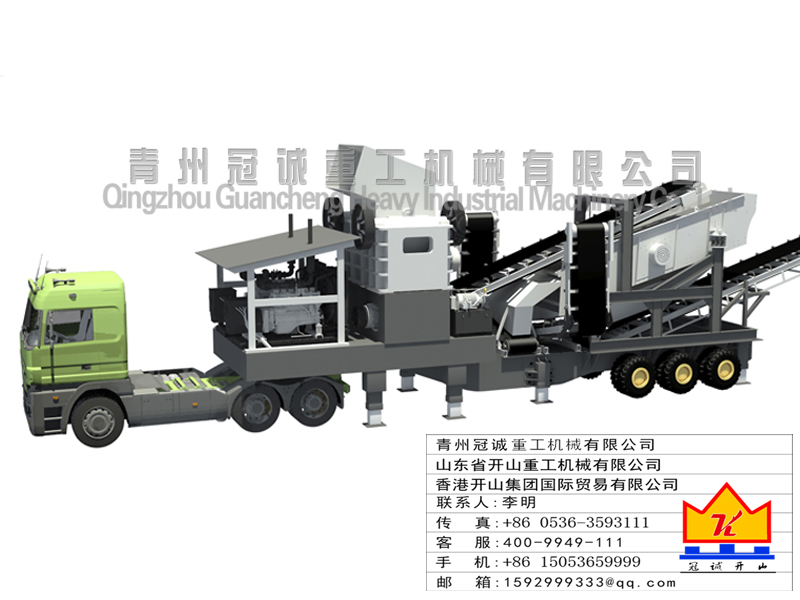

Model1



Brief Introduction

Movable crushing and screening plant is composed by 2 main parts,using in mine/construction filed, is designed by our company (Qingzhou guancheng heavy industrial machinery co.,ltd),has the following advantages compared to the traditional machines

1). Upgrade of the reinforced U beam chassis, the complete set of equipment is more steady, more stable;

2). Movable crushing and screening car integrated power unit in one, reduce working area of equipment, which greatly improves the flexibility and the transportation cost

3). Mobile equipment driven easily and convenient. In the long-distance transportation can use semi-trailer traction; additional steering traction system in short distance transport, mobile site can be used when the excavator or loader to traction equipment, for the user save semi-trailer costs, save a lot of cost and time. (Note: the ordinary mobile crushing station can be driven only by Semi Trailer;

4). With hydraulic legs easy to rise up,time-saving and efficiently

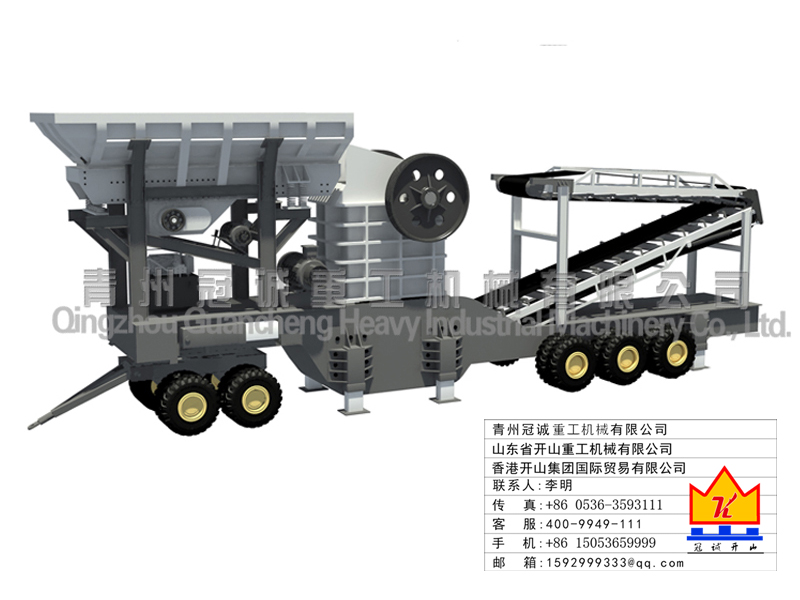

PartI

Part II

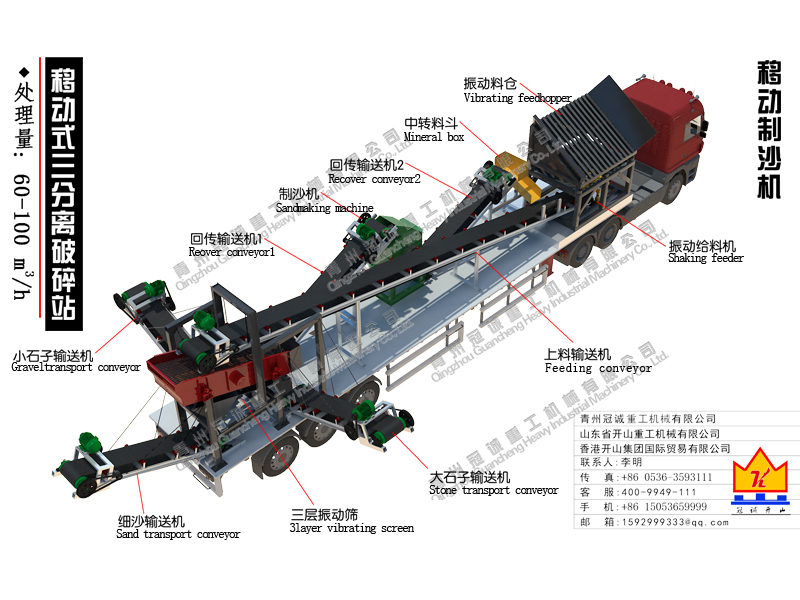

Model2

Introduction

This movable crushing and screening station is to classify the material into 3sizes and capacity is 60-100m3/h,it’s designed by Qingzhou Guancheng heavy industrial machinery co.,ltd,base plate made from 17.5m semi trailer base plate,the advantage:

1).it can be moved or drived by trailer engine easily,and another set of driving and directions system to be additional,it can be driven by another car or trailer.

2). The vibrating feed hopper and shaking feeder ,the screen of vibrating feed hopper can prevent the big stone from getting into the machine,it can reduce the abrasion,make it work more efficiently,the shaking feeder keep it off clogging of material and well distributed to be transported.

3).Vibrating screen using 2layer mesh,the first layer is using 25# round steel,the 2nd layer with polyurethane screen mesh.
