New design rock mine movable gold separating car

Gold mining machinery Introduction

This set of specialized rock mine movable gold separtor,it’s customized using for rock mine material,the advantage:

1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.

2.The shaking feeder under feed hopper to prevent clogging of material

3.The concentrator sysytem we can horizontal auto discharge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.

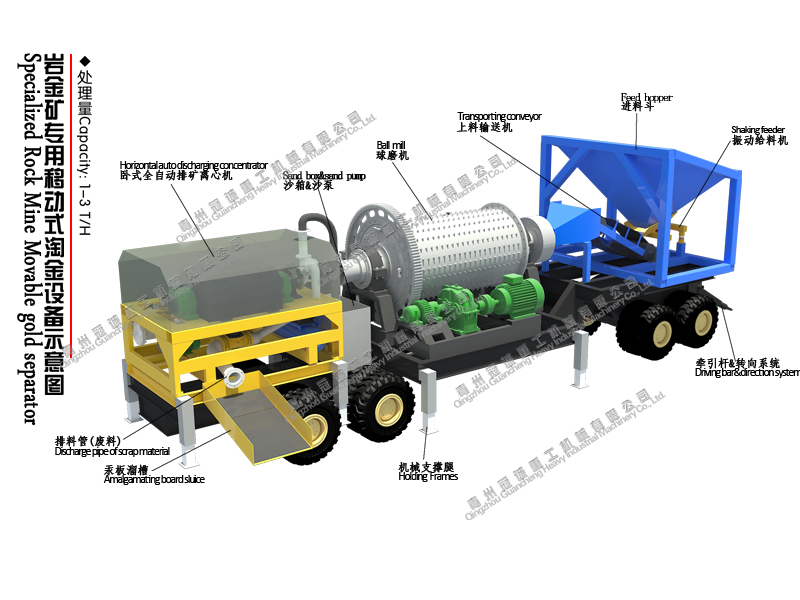

Gold mining machinery technical process

The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)

Gold mining machinery detail parameter

Capacity：1-3ton/hour

Outlet size:12.7*4*3.9m（L*W*H）

Length of base plate：10.5m

Ball mill feeding size：5mm

Ball mill:900*2600  capacity:1T/h,power:15KW

       1200*2400 capacity:1-3T/H,power:30kw

Horizontal auto discharge concentrator:60# power:6.05KW

Generator set:75kw 1set

Driving speed:advise to be less than 15km/h
