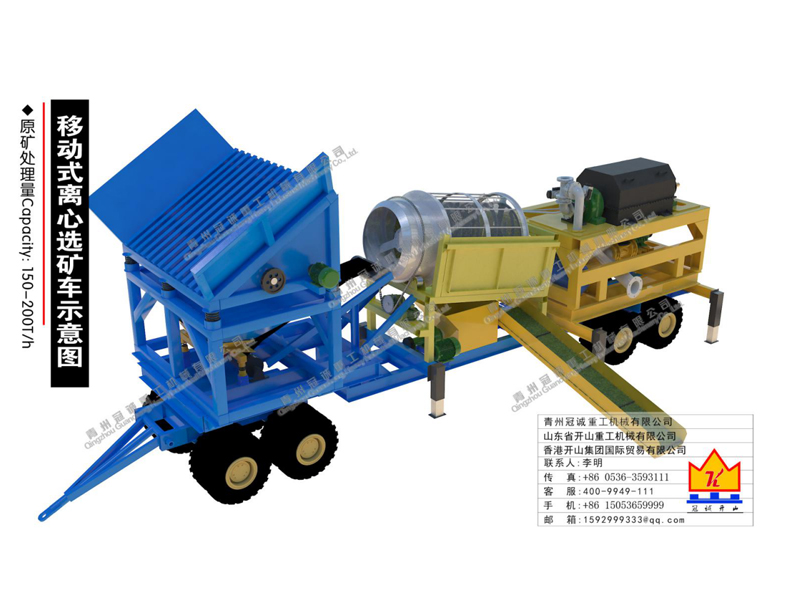

Movable gold separating centrifugal car with vibrating feed hopper

Technical process

The mineral mixture getting into vibrating feed hopper by excavator,firstly to get rid the useless minerals in very big size,it makes the machine more efficently and can redcue the abrasion,then the mineral getting into shaking feeder under vibrating feeder,transporting by conveyor to reamers trommel screen to be classified to be:big size and small size.The mineral in big size recovering by fixed sluice to collet the gold,the scrap are getting rid;the mineral in small size are sending to horizontal auto discharge concentrator by sand pump to get gold concentrate and the scrap finally are getting ride to scrap area.

Detail parameter

The Max outlet size(including driving bar):13*6.5*5.2m

Length of base plate:11m,made of 25double T steel

Tyre：900-2#,4axles16tyres

Mechanical holding frames:6pcs

Vibrating feed hopper:Length 2m,width:3m,eccentric shaft motor5.5kw,Motor of shaking feeder:0.55kw

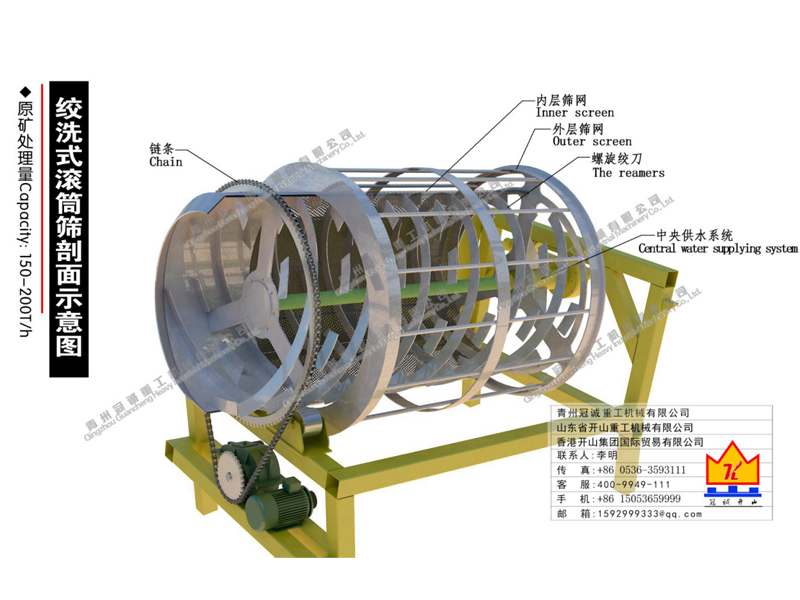

Trommel screen:inner diameter 1.3m,outer diameter1.6m,screen mesh 1.8m,reamer trommel 2.5m,the central water supplying system,motor 7.5kw

Feeding conveyor:belt width 0.6m,pole length2.8m,Motor:elctric roller 2.2kw

Sand pump:4inch,motor 15kw

Fixe gold sluice with carpet:1*4m
