Capacity 60-80ton/hour gold separating machine from rock mine tailings

Brief Introduction

This set of machine designed by our company according to customer’s requirement,the capactiy is 1-3ton/hour,it works in good performance and in high recovery low failure easy maintence and the main advantage:

1).The shaking feeder under feed hopper to prevent the clogging of material,and make the material well-distributed.

2).The trommel screen with 4reamers a good result in claying ore

3).Guancheng Trommel screen using central and two flanks water supplying system,the central water supply to swill the inner material of screener,the two flanks water supplying system to clean the outer screen mesh to prevent to material clogging.

4).Gold centrifugal concentrator using horizontal auto discharge type which works efficently and reducing labour cost.

Technical process

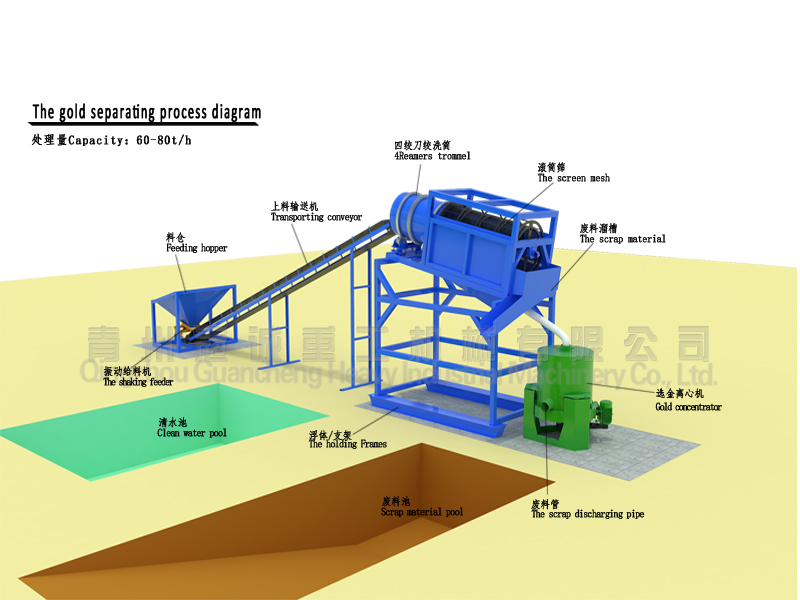

The mineral mixture going into feed hopper then well distributed by shaking feeder to be transported with conveyor,then get into  4 reamers trommel to cut the clay and water rushed then going into screen mesh material to be classifier into 2 size 0-6mm and over 6mm,the 0-6mm material going into horizontal auto discharge gold concentrator to get gold concentrate,the size over 6mm material are getting rid into scrap material pool.
