Capacity100-150tph Jet suction dredger

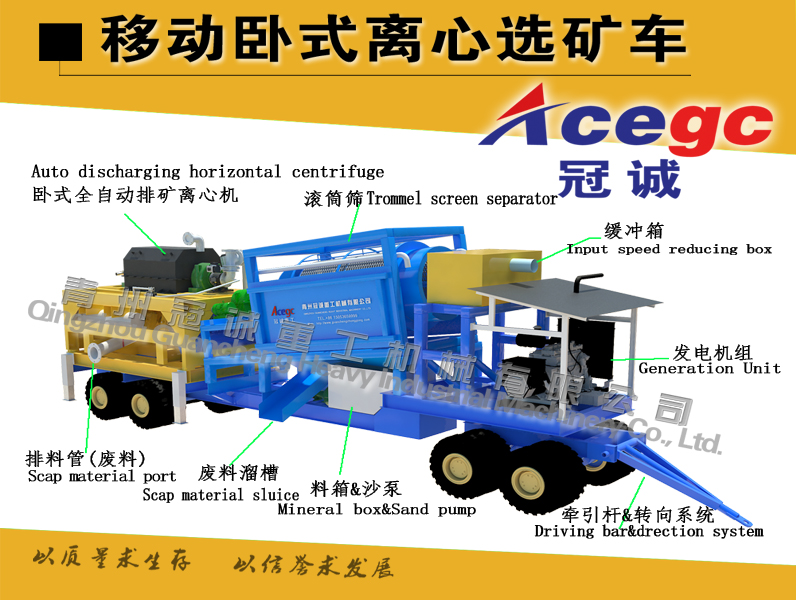

It including generator set,horizontal gold auto discharge concentrator,trommel screen separator,base plate and direction wheels etc.The trommel classifier and horizontal continuous variable concentrator is the important unit in this car.
The advantage:
1.Can move easily,circled in 180 degree,only need one car can be drived to destination
2.Feeding of this type is newly by sand pump&input speed reducing box,no need of frames to hold it while cooperation with other gold machine.
3.Can easliy cooperate with other gold machines,such as shaking sulice,suction dredger etc with high recovery
4.The feeding type can be easily changed to be feed hopper as customized
5.The horizontal concentrator can be used highly effient and steady,controled by PLC with a good performance in jolting surroundings.
Detail parameter
|
Production |
Specification |
Quantity |
Power |
Remark |
|
*Feed hopper |
3400*2980 |
1set |
- |
can be changed |
|
*Input speed reducing box |
|
1set |
- |
|
|
Trommel screen |
Inner diameter 1.3m,outer diameter 1.6mscreen mesh 3m |
1set |
- |
|
|
Truck chasis |
Heavy truck base plate design,4axes16tyres |
1set |
- |
|
|
Holing frames |
Holding the gold concentrator |
4pcs |
- |
|
|
Gold centrifuge concentrator |
1200#horizontal automatic discharge |
1set |
21.5 |
|
|
Sand pump |
4inch |
1set |
15 |
for gold concentrator |
|
Sand pump |
6inch |
1set |
18.5 |
for input speed reducing box |
|
Centrifugal pump |
11KW |
1set |
11 |
the water supplying |
|
Generate set |
advise to use 120kw |
1set |
- |
can be customized |
|
Electric box |
|
1pcs |
- |
|
|
Total power |
66KW |
|||
Detail parameter
|
Production |
Specification |
Quantity |
Power |
Remark |
|
Jet suction dredger |
Diesel generate set6105,6inch sand pump,28hp diesel generate set,4inch water pump,pontoon length 8m,width6m etc |
1set |
|
|
