Bucket dredger capactiy100-150m3/h dredging depth3-5m

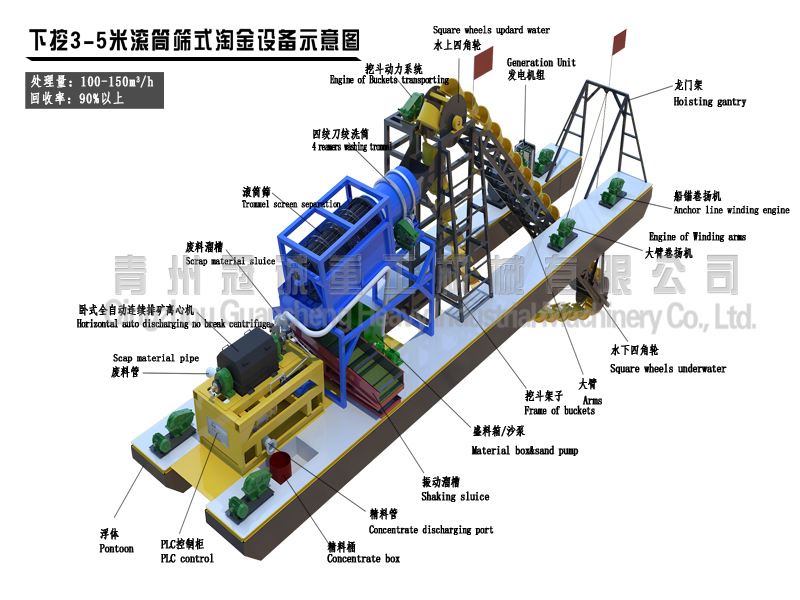

Technological process
The material from the bucket shipped into the trommel screen fixed with 4 reamers which can ream and wash the clay off,then to be separating into 3sizes <6mm,6-30mm ＞30mm,the biggest size useless are directly discharged to waste area by scrap sluice;
6-30mm material into shaking chute for recycling, scrap material discharged into the waste area;
The small size material <6mm gettinginto the material box through sand pump feeding into a horizontal auto&no break discharging centrifuge, then the concentrate got and finally into fine material box, scrap material to be get rid from waste pipe.
Details parameter
|
Prouduction Name |
Specifications |
Quantity |
Power |
Remark |
|
Pontoon |
Single width 1.8m,height 0.92m,Length 25m |
1set |
- |
|
|
Bucket dredger |
Main frame height:5.6m Double 16#UsteelArms under water:16.5m 12#/10#U steel |
1set |
37KW |
|
|
Trommel screen separator |
The trommel fixed with 4 Reamers: length 2.2m |
1set |
7.5KW |
|
|
Horizontal centrifuge |
1200#Auto discharging no break centrifuge |
1set |
21.5KW |
Controled by PLC |
|
Shaking sluice |
1350*4500mm |
1set |
3KW |
|
|
Arms winding engine |
400#reducer |
1set |
11KW |
|
|
Main Anchor |
350#reducer |
1set |
3KW |
|
|
Winding engine of Anchor line |
3KW |
4set |
12KW |
|
|
Water pump |
7.5KW |
1set |
7.5KW |
|
|
Centrifugal pump |
7.5KW |
1set |
7.5KW |
|
|
Sand pump |
4inch |
1set |
11KW |
|
|
Electricity cabint |
Including the electricity wire to machine |
1set |
- |
|
|
Generation unit |
150KW |
1set |
- |
|
|
Power |
Power121KW needed while running the same time,the working period 95KW(not including lights,advise to use150KW generation unit) |
|||
