New desgin all in one gold alluvial separating car

 Production

 Specification

 Quantity

 Power

 Remark

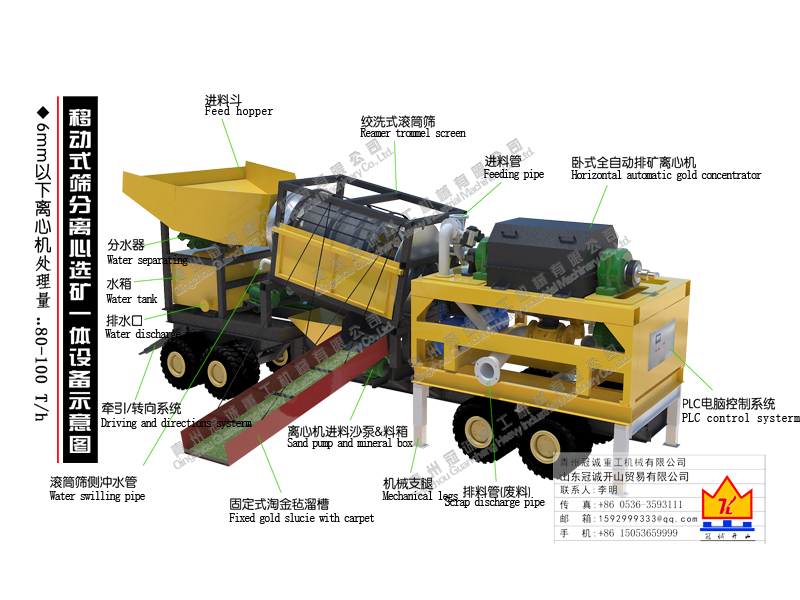

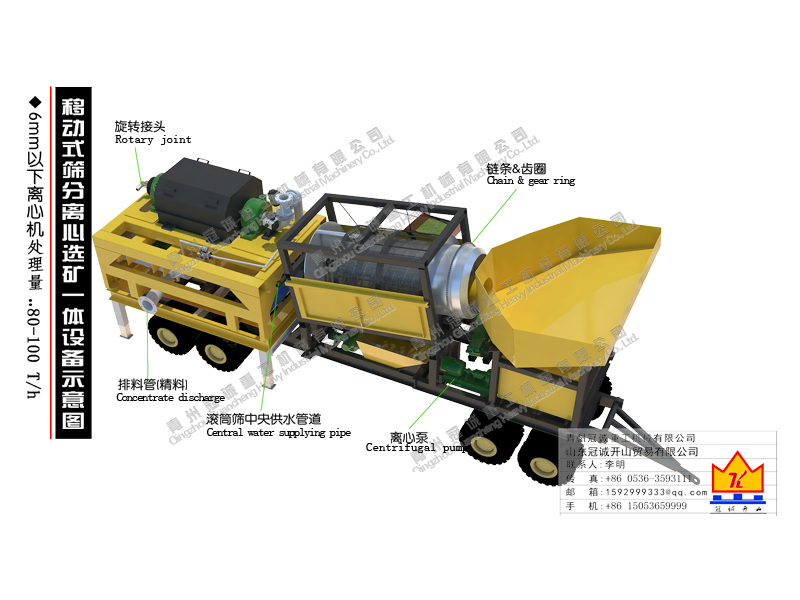

Gold mining machinery portable trommel screen centrifugal gold separating machine

Feed hopper:3.4*2.85m
Trommel screen:
Inner diameter:1.3m,outer diameter:1.6m,screen mesh:1.8m,with reamers and driving with chain
Gold concentrator:1200# horizontal automatic discharge type
The base plate:9.9m
Tyre:4axles and 16 tyre 900-2#
Sand pump and mineral box:4inch
Centrifugal Pump:5.5KW 1pcs
Water separating:with valve

1set

45.5

 There are pipe only for this set of gold mining machinery use excluding pipes from water sources to the machine.

Electric box

1set

-

Including the electric wire to machine,excluding the cable.

Power

71.5KW

 Specification

 Quantity

 Power

submerged
pump

5.5KW

2set

11KW

Diesel pump

Diesel engine：6100# Pump:6inch

1set

-

Centrifugal pump

15KW

1set

15KW

Water hose for submerged pump

fire fighting hose 20m/roll

6roll

-

Pipe for diesel pump

HDPE pipe and joint

400m

-

Pipe for centrifugal pump

HDPE pipe and joint

100m

-

Suction pipe

5m/pcs

10m

-

Strainer Valve

2pcs

-
