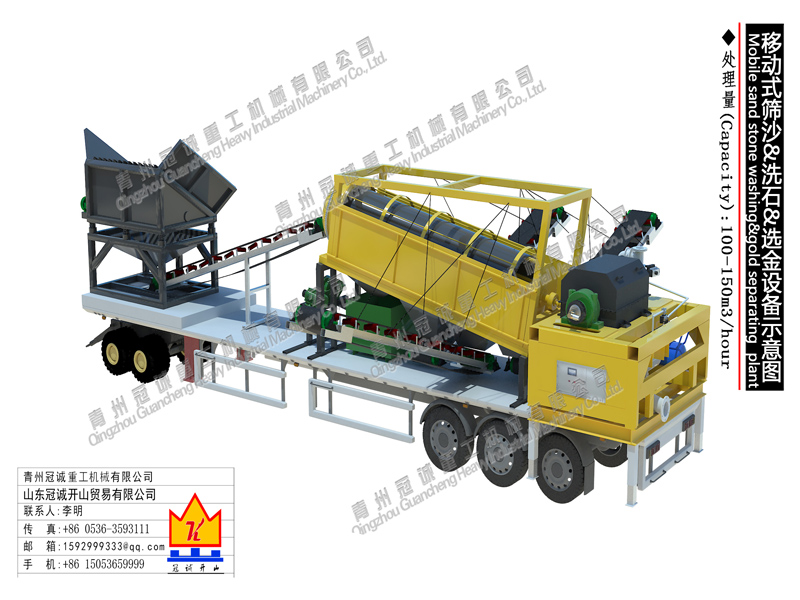

17.5M truck chasis 100-150m3/hour mobile sand stone washing gold mining machine
Technical process
The Raw material into vibrating feeder,then screening the one in big size stone to reduce the abrasion of trommel screen,the other into trommel screen to be classified into 4size 0-6mm; 6-10mm; 10-30mm ＞30mm
＞30mm waste material transported by conveyor into scrap area；
10-30mm material transported by conveyor into destination area；
6-10mm material transported by conveyor into destination area；
0-6mm material into mineral box and send to 1200# horizontal automatic discharge gold concentrator by 1set 4 inch sand pump to get concentrate，the waste material discharged from discharge pipe.
Detail parameter
| Production Name |
Specification |
Quantity |
Power |
Unit price |
Total price |
Remark |
|
|
|
1 |
- |
|
||
|
|
2000*2200 |
1 |
5.87 |
|
||
|
Transport conveyor |
Belt width 800mm,pole length 7m |
1 |
7.5 |
|||
|
Trommel screen |
Inner diameter 1.3m,outer diameter 1.6m,screen mesh 4.3m |
1 |
11 |
|||
|
Centrifugal concentrator |
|
1 |
21.5 |
|||
|
|
|
3 |
5.5*3 |
|||
|
|
|
1 |
11 |
|||
|
|
1 |
5.5 |
||||
|
|
|
1 |
- |
customized |
||
|
|
1 |
- |
||||
|
|
78.87KW |
|||||
